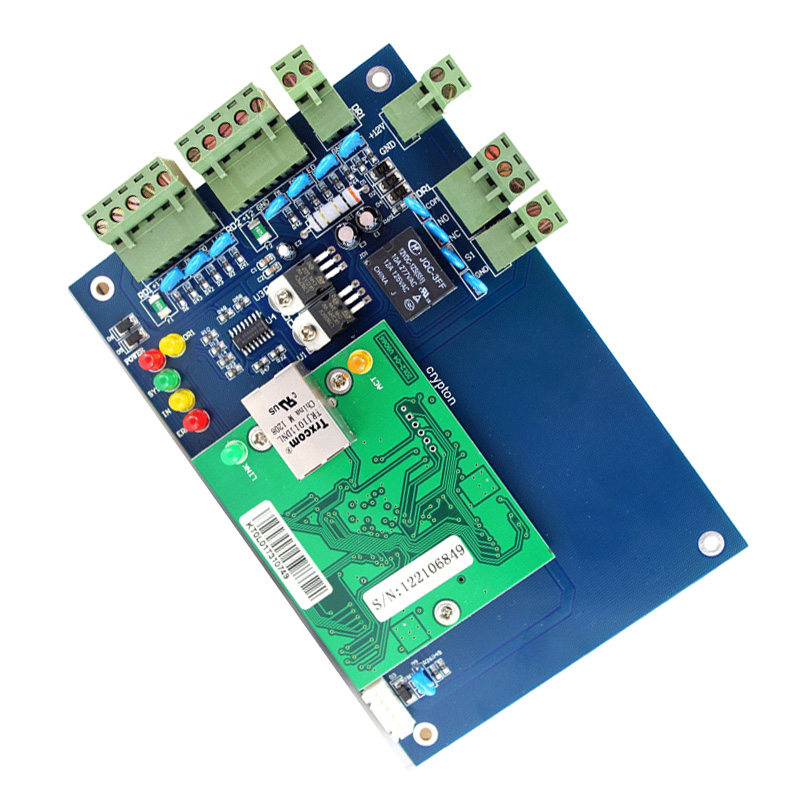

The RFID System One Door Network Panel is a single-door access control solution featuring built-in TCP/IP connectivity. It supports two RFID access readers or one RFID reader combined with an exit push button. The system is compatible with various card protocols, including Motorola, HID, EM, and Mifare One. It offers adjustable door opening time settings ranging from 1 to 600 seconds.
What is Access Control?
Access control is focused on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control, and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.
| Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
| Model # | ACB-001 | ACB-002 | ACB-004 |
| Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
| Description | Control 1 door, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 4 doors, get in the door by swiping the card and get out the door by button |
| Size of PCB board | 160mm*106mm | 160mm*106mm | 160mm*106mm |
| Size of Case | 273mm*228mm*65mm | ||
| Power Supply | 12VDC 4-7A | ||
| Power Consumption of Circuit Board | Less than 100mA | ||
| Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
| Quantity of Readers | 2pcs | 4pcs | 4 pcs |
| Door Controlled | 1door | 2 Doors | 4 Doors |
| Door opening time extending setting | 1-600 seconds(adjustable) | ||
| Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
| Model # | ACB-001 | ACB-002 | ACB-004 |
| Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
| Description | Control 1 door, get in and out the door by swiping the card or get in by swiping a card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping a card and get out the door by button | Control 4 doors, get in the door by swiping the card, and get out the door by button |
| Size of PCB board | 160mm*106mm | 160mm*106mm | 160mm*106mm |
| Size of Case | 273mm*228mm*65mm | ||
| Power Supply | 12VDC 4-7A | ||
| Power Consumption of Circuit Board | Less than 100mA | ||
| Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
| Quantity of Readers | 2 pcs | 4 pcs | 4 pcs |
| Door Controlled | 1 door | 2 doors | 4 doors |
| Door opening time extending setting | 1-600 seconds(adjustable) | ||
| Max q ‘ ty of controller | No limit | ||
| Operation Temperature | -40℃~70℃ | ||
| Operation Humidity | 10-90 ％ RH ， No Condensation | ||
| Q ‘ ty of users | 20,000 Users | ||
| Q ‘ ty of Event Buffers(offline) | 100,000 event buffers | ||
| Power interruption protection measure | High-Speed Memory, Records never lose | ||
| Max Distance from Reader to Controller | 100m (suggestion distance 80m) | ||
| Max Distance between Controllers | TCP/IP: Depends on net coverage area | ||
| Package included: | PCB board, software, manual, certificate. carton | ||
| Alarm for long time door open, illegal break-in, intimidate | Yes | ||
| Fire and alarm linkage | If no connection with the expansion board, only has a software interface alarm and drives the computer speaker. If connected with an expansion board, is able to alarm by hardware, if connected with a strengthened expansion board, then is able to Security alarm, Model is ACB-EA05 | ||
| A Compulsive open and close door at a long time | Yes | ||
| Open door in the remote distance | Yes | ||
| Interlock | No | Yes | Yes |
| Anti pass back and tail | Yes | Yes | Yes |
| Multi-card open door | Yes | ||
| Open a long time at a specified time | Yes | ||
| Electronic map | Yes | ||
| Urgency locking | Yes | ||
| First card unlocking | Yes | ||
| Unlock based on internal and external validation | Yes | ||
| Keypad (card+passwor, supper password) | Yes | ||
Here are all available powerful functions for our ACB-001, ACB-002, and ACB-004
