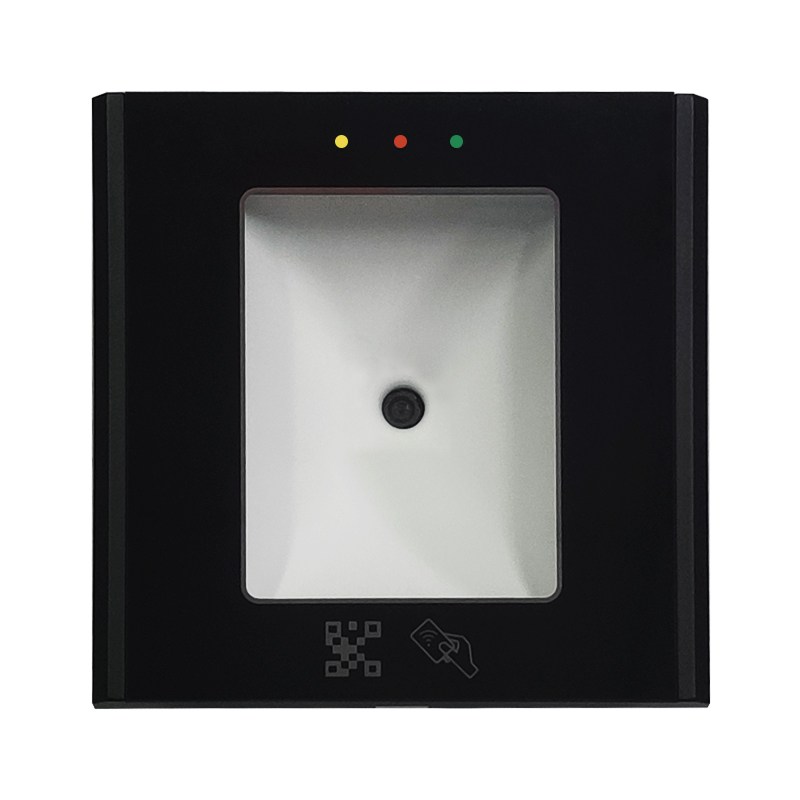

The QR Code Scanner Barcode Access Control Reader supports QR codes and 1D barcodes for flexible authentication. It offers multiple interfaces, including Wiegand, RS485, USB, and TCP/IP, ensuring compatibility with various systems. With a fast reading speed of under 200ms and a range of up to 20cm, it is ideal for applications such as office access, visitor management, and smart home systems.
| Dimension | 86L X 86W X42H (mm) |
| Material | PC and Tempered glass |
| Interface | Wiegand26/34, RS485, RS232, USB, TCP/IP optional |
| Decoding support | QR and One dimensional code |
| Voltage support | 4~15V Wide voltage input |
| Current | 800mA |
| Reading directions | Camera centric slant 45° |
| Reading speed | <200ms |
| Reading range | 0~20CM |
| Reading feature | Auto-induction, beep hint |
| Light source | With LED light source itself, Anti-highlight interference |
| Decode mode | Image decoding |
| Application environment | Temperature: -20°C~70°C |
| Humidity | 10%~90% |
| Operate system | Windows(XP7, 8, 10), Linux |
| Indicating status light | Red-Work, Green- Feedback, Light Green-Internet |
| Reading range | 3~6CM |
| Reading card type | EM or Mifare card |
